Scale Rental and Sales

Our truck scales have the following features:
  • Set up in less than 5 minutes, on any hard level surface
  • No jacks or tools required for setup
  • Portable and self contained
  • Pulls behind vehicle at highway speeds
  • Size: 7 1/2' w x 10' l x 7" h deck
  • Hydraulic lift kit
  • 12 Volt Power Pack
  • Self-contained solar charging system
  • 4 attached ramps
  • Weatherproof indicator storage box
  • Tires and spindles
  • 2 5/16" ball hitch
  • 50,000 lb deck capacity
  • efficient by hauling at or near capacity without exceeding legal limits.
  • Single or tandem axles will fit on the platform.
  • Extra heavy steel frame.
  • Rugged 99.75 percent accuracy Weigh-Tronix weigh bars.
  • Weigh-Tronix Model 640XL Indicator and stand: The 640XL Indicator is low cost and simple, designed to withstand today’s harsh, farm environment. It has a large 2" display which is easy to read. This indicator is ideal for grain cart applications with its compact design. The 100 alpha-numeric memory channels can track yields of individual fields or the entire harvest season. A report can easily be transferred to a printer or transfer data system for ease of record keeping. With the auto-loc capabilities for livestock weighing, the indicator can automatically accumulate livestock weights and indicate number of animals in each group, the average, and the total of all the livestock weighed.

  • These scales are used by Custom Harvesters in California
    Scale setup images
    Choose image

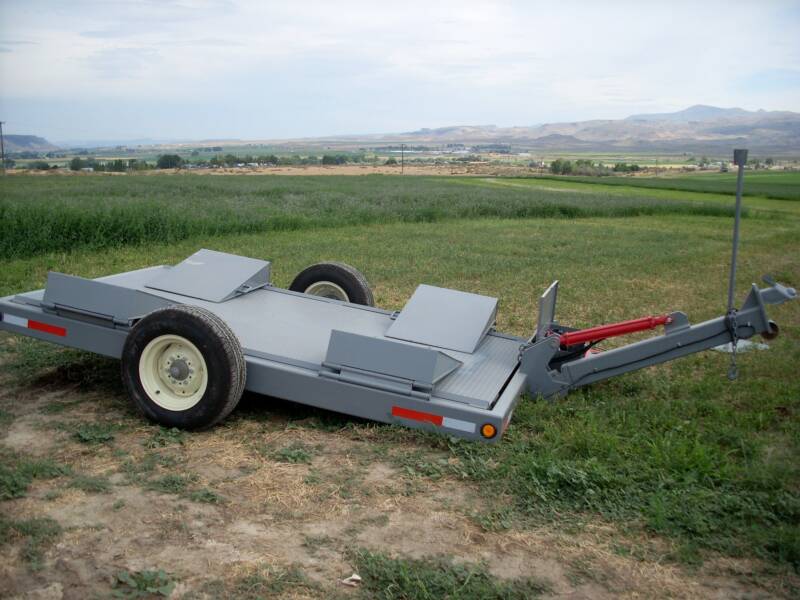

    The first step in scale setup is to raise the tongue.

    Next the tongue is used to lift the frame so that the tires can be removed.

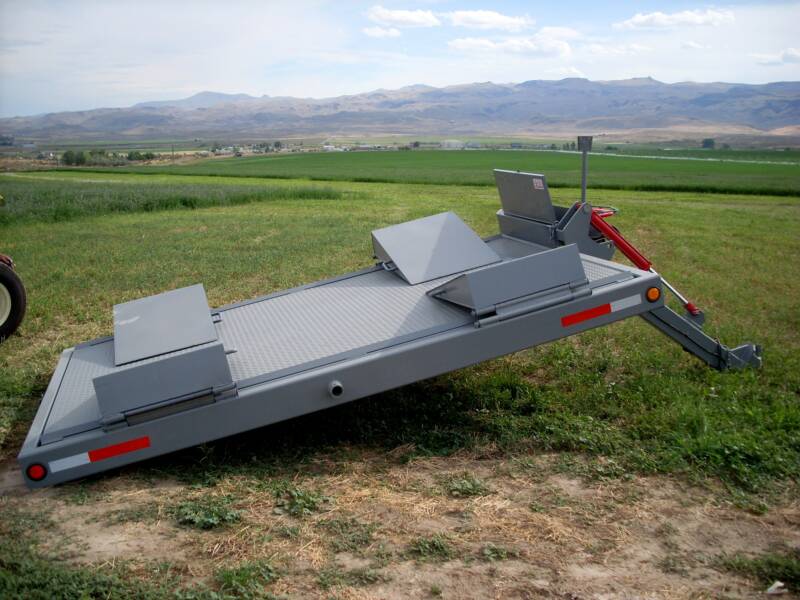

    Finally the tongue is lowered again and the ramps are put in place. The scale is now set up for weighing.

    Scale setup video
